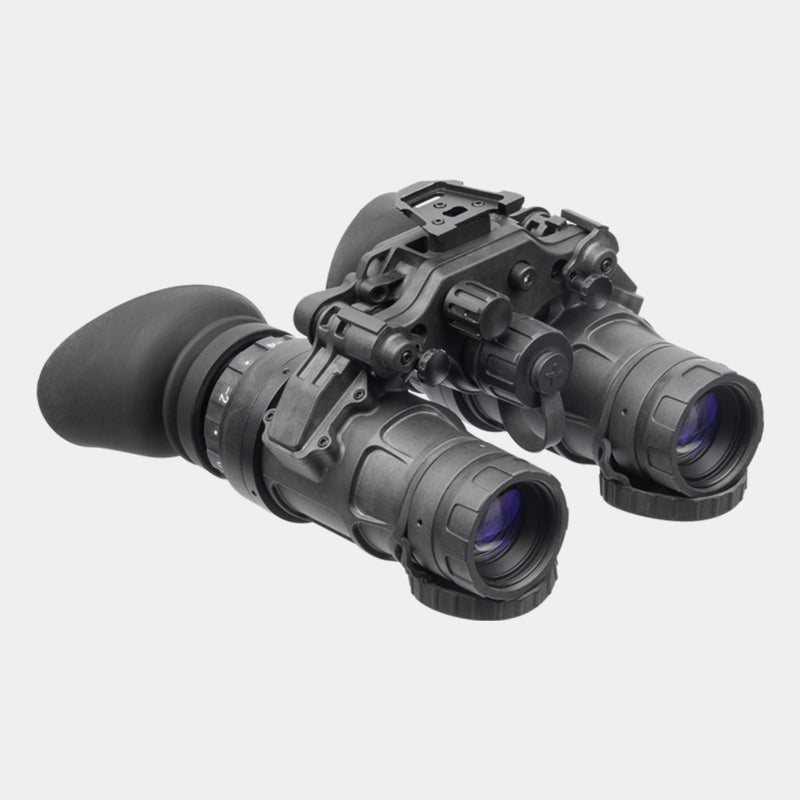

agm night vision goggles Night Vision Binocular UNVG (Ultra Night Vision Goggles)

The AGM UNVG Night Vision Binoculars are an all-in-one solution, ideal for tactical and security operations. Made from material PEEK+Fiberglass, they offer high durability and lightness, weighing only 500 grams.

Equipped with advanced optics, these binoculars are compatible with high-end Gen 2+ image intensifier tubes (IIT) ranging from 1400 to 2000 FOM. In addition, they feature manual gain control, which allows you to adjust the brightness of the image according to the lighting conditions.

The tubes are independent, which allows you to configure the device to use it as a monocular or binocular. Each tube is automatically turns off when turned, optimizing battery usage. It works with a AA battery, with up to 15 hours of autonomy, or with the battery pack included, which extends the dDuration up to 50 hours.

They also include an infrared illuminator, ideal for enhancing vision in complete darkness. They can be mounted on helmets or visors using a standard dovetail rail mount.

The package includes:

• Night vision goggles
• External battery (Battery pack)
• Connection cable with battery adapter
• Anti-fog shield (2): They are placed over the lenses to prevent them from fogging up during use. This type of protection is especially useful in high humidity conditions or sudden temperature changes, as it helps keep the lenses clear and ensures a clear vision during nighttime operations.
• Sacrificial Window (2): They protect the main lenses of the night vision goggles. These "sacrificial windows" are designed to be replaced when they are damaged or scratched due to use or contact with objects. This way, the internal optics of the goggles are protected, and the lifespan of the equipment is extended.

• Transport case
• Lens cloth
• User manual


Main advantages:

• Low energy consumption: Works with a AA battery or external battery.
• Automatic shutdown: Each tube automatically turns off when tilted to one side.
• High durability: Corrosion and impact-resistant casing, made of PEEK+Fiberglass material.
• Easy assembly: Compatible with standard dovetail type mounts.
• Compatible with PVS-14 style: Objective and ocular lens compatible with PVS-14 components.
• Operational flexibility: Independent movement of the pods, adjustable for monocular or binocular.
• Ultralight case: Only 500 g, improving mobility and reducing fatigue.
• Improved vision in the dark: Integrated infrared illuminator.
• Manual gain control: Adjustment of image intensity for changing light conditions.

Main features:

• Magnification: 1x
• Lens system: 25mm, F/1.23
• FOV (Field of View): 40°
• Focusing range: 0.25 M to infinity
• Pupil distance: 25 mm
• Diopter adjustment: -6 to +2 diopters
• Infrared illuminator: Yes
• Manual gain control: Yes
• Battery type: A AA (1.5 V) or external battery (four AA or two CR123A)
• Battery life:
  • An AA - up to 15 hours
  • External battery (four AA) - up to 50 hours
  • External battery (two CR123A) - up to 30 hours
• Exit pupil diameter: 14 mm
• Operating temperature range: -40°C to +50°C (-40°F to +122°F)
• Storage temperature range: -50°C to +70°C (-58°F to +158°F)
• Weight (without battery): Glasses: 500 g (1 lb) / External battery: 250 g (0.55 lb)
• Overall dimensions:
  • Glasses: 101 × 116 × 85 mm (4.0 × 4.6 × 3.3 in)
  • External battery: 102 × 86 × 34 mm (4.0 × 3.4 × 1.3 in)

Model Comparison:
